PVC Diaphragm Valve

PVC Diaphragm Valve Manufacturer

SOLID supplies weir-type PVC diaphragm valves with replaceable EPDM, FPM/FKM, and PTFE diaphragm options for industrial water treatment, chemical dosing, and liquid-handling pipelines. Our standard PVC-U and CPVC valve range covers DN15–DN100, including flanged models compatible with DIN PN10, ANSI Class 150, and JIS 10K connections. We also provide small-bore socket, threaded, and true union configurations for PVC piping systems.

As a PVC diaphragm valve manufacturer and supplier in China, we offer complete valve assemblies with different body, diaphragm, and operating configurations. Our standard products use manual handwheel operation, while custom orders can include PTFE/EPDM or FEP/EPDM composite diaphragms, PVDF barrier options, pneumatic or electric actuation, and larger sizes up to DN300. We also supply matching replacement diaphragms for our valve configurations.

Available PVC Diaphragm Valve Configurations

Our diaphragm valve range is organized by body material, connection structure, diaphragm assembly, and operating method. We supply standard manual valves for DN15–DN100 pipelines and customized larger-diameter or automated configurations.

UPVC and CPVC Diaphragm Valves

Our standard UPVC diaphragm valves use PVC-U bodies with manual handwheel operation. Available configurations include flanged and small-bore connection designs, with EPDM, FPM, and PTFE diaphragm options.

We also supply CPVC diaphragm valves using PVC-C bodies, corresponding bonnets, and compatible diaphragm assemblies. These are available for customers specifying CPVC in their industrial piping systems, with additional custom options for body components, end connections, and operating mechanisms.

EPDM, FPM and PTFE Diaphragm Assemblies

The diaphragm is a replaceable sealing component in our weir-type valve range. SOLID supplies different diaphragm materials and composite constructions so customers can purchase complete valves and matching diaphragm replacements within the same supply program.

Available Diaphragm Materials

PTFE and Composite Diaphragm Options

SOLID offers PTFE diaphragm configurations alongside EPDM and FPM elastomer diaphragms. We also provide custom composite assemblies with different chemical-facing and support layers.

Replacement Diaphragms for SOLID Valves

We support replacement diaphragm orders for the valve configurations we supply. Customers can include spare diaphragms in a new valve purchase or request replacements for an existing SOLID diaphragm valve.

For replacement orders, we can identify the appropriate diaphragm configuration from the SOLID valve model, nominal size, diaphragm material, and available part or assembly drawings.

PVC Diaphragm Valve Technical Specifications

Our standard weir-type diaphragm valve range covers DN15–DN100. The product series includes PN10 and PN16 configurations, with available pressure ratings assigned according to the specific valve construction, material, and connection type.

The DN15–DN100 range represents our standard product series.

PVC Diaphragm Valve Connections and Dimensions

SOLID supplies flanged diaphragm valves and small-bore socket, threaded, and true union configurations. These products are available with different end connections rather than a single interchangeable valve body design.

Flanged, Socket and True Union Connections

Standard Flanged Valve Sizes

Valve Dimensions and Flange Compatibility

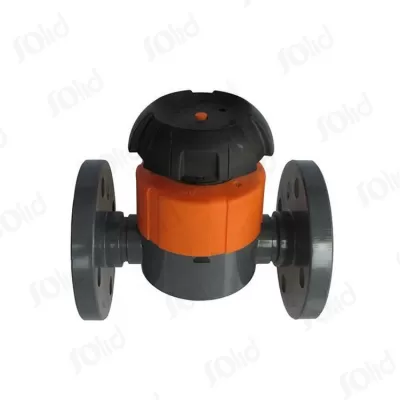

Our flanged PVC diaphragm valves include DIN PN10, ANSI Class 150, and JIS 10K connection options.

For solvent-weld socket connections, we supply PVC-U and CPVC configurations designed for their corresponding piping systems. Other thermoplastic materials are supplied with suitable connection methods for the selected construction.

Valve Body, Bonnet and Internal Component Materials

SOLID provides different body and bonnet materials across our PVC and custom thermoplastic diaphragm valve ranges. We also offer corresponding diaphragm, compressor, stem, and operator configurations.

Optional Thermoplastic Materials

Manual, Pneumatic and Electric Diaphragm Valves

The standard SOLID PVC diaphragm valve uses manual handwheel operation. We also offer complete pneumatic and electric diaphragm valve assemblies with corresponding bonnet, stem, mounting, and actuator arrangements.

Pneumatic PVC Diaphragm Valves

We supply customized pneumatic diaphragm valves using PVC-U, CPVC, or other applicable thermoplastic bodies.

Available assemblies include pneumatic operating components with matched bonnet and valve construction.

Electric PVC Diaphragm Valves

Our electric diaphragm valve range is available through custom valve-and-actuator assemblies.

We supply suitable operating components for the selected valve dimensions, body material, diaphragm construction, and electrical actuator requirements.

Manual and automated products use their corresponding operating assemblies; an electric or pneumatic actuator is not presented as a universal replacement for every manual handwheel.

Custom PVC Diaphragm Valve Manufacturing

SOLID supports custom PVC diaphragm valve manufacturing for industrial distributors, water treatment equipment manufacturers, and chemical-processing projects.

Our customization focuses on the components that determine the actual valve assembly: body size, diaphragm construction, connection type, bonnet material, operator, replacement parts, and OEM requirements.

PVC Diaphragm Valves for Industrial Liquid Handling

Our diaphragm valves are available for throttling and shut-off applications in compatible industrial liquid systems. We supply the valve and diaphragm configurations below for different equipment and pipeline requirements.

For customers purchasing different flow-control products, SOLID also supplies PVC Globe Valves with disc-and-seat regulation structures, and PVC Butterfly Valves for quarter-turn isolation.

Our PVC True Union Ball Valves are available for removable-end shut-off applications, while PVC Swing Type Check Valves provide automatic reverse-flow prevention.

Wholesale PVC Diaphragm Valve Orders

SOLID supplies PVC diaphragm valves for industrial distributors, equipment manufacturers, OEM buyers, and project procurement companies.

We provide complete standard valves, customized material and operator configurations, and replacement diaphragms within the scope of the selected products.

Ordering Information

PVC Diaphragm Valve Purchasing FAQ

What is the difference between your standard and custom diaphragm valve sizes?

Our standard series covers DN15–DN100. Custom valves cover DN125–DN200, while special large-diameter designs are available from DN250 to DN300.

The larger products use their corresponding valve body, diaphragm, bonnet, connection, and pressure configurations.

Are PN10 and PN16 PVC diaphragm valves available?

Yes. Our published product range includes PN10 and PN16 configurations.

The applicable rating is supplied with the corresponding valve size, material, connection type, and diaphragm valve construction. PN16 is not represented as a universal rating for every product in the range.

Can you supply PTFE/EPDM or FEP/EPDM composite diaphragms?

Yes. We offer PTFE/EPDM and FEP/EPDM composite diaphragm configurations, as well as suitable PVDF barrier options.

These assemblies are matched to the selected valve design and diaphragm dimensions.

Can SOLID supply true union PVC diaphragm valves?

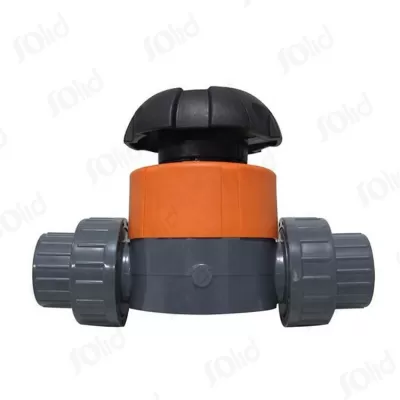

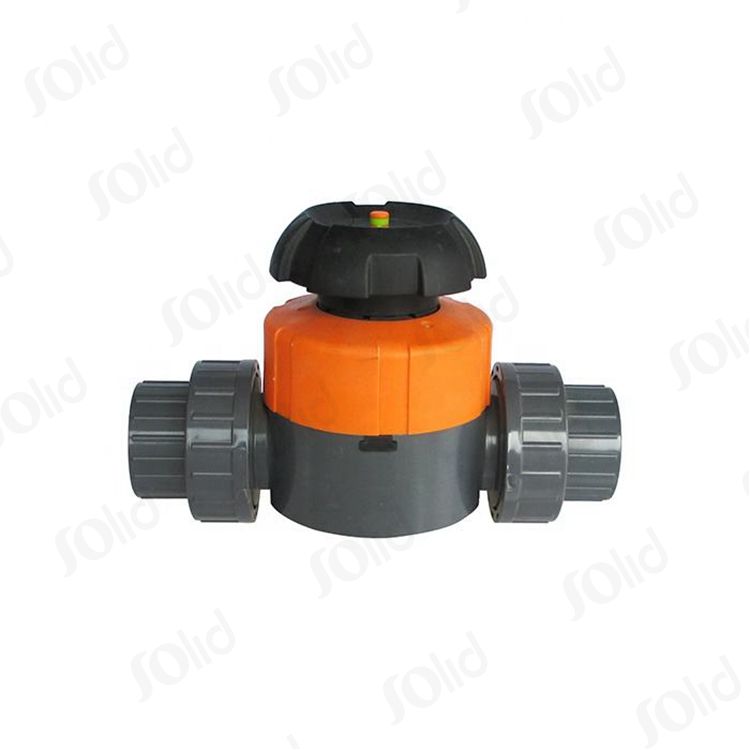

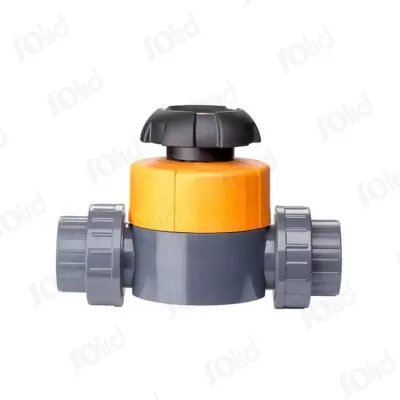

Yes. We supply small-bore true union PVC and CPVC diaphragm valve configurations, including applicable socket and threaded connections.

Our published small-bore connection series includes 20–63 mm pipe connections.

Can you provide PVDF or PPH diaphragm valves?

Yes. SOLID offers PVDF, PPH, FRPP, and reinforced polypropylene diaphragm valve configurations as part of our custom product range.

These options include corresponding body and bonnet constructions, diaphragm materials, and connection arrangements.

Can you produce diaphragm valves with our own logo and colors?

Yes. We support OEM product marking, customer logos, handwheel colors, and custom packaging.

We also supply customized valve dimensions, body materials, diaphragm assemblies, and connection configurations.

Request a Quote for PVC Diaphragm Valves

SOLID supplies weir-type PVC diaphragm valves with DN15–DN100 standard sizes, PVC-U and CPVC bodies, and EPDM, FPM, PTFE, or custom composite diaphragms. Our range includes flanged, socket, threaded, and true union products, together with custom DN125–DN300 configurations, pneumatic and electric valve assemblies, and matching replacement diaphragms.

We support industrial distributors, water treatment equipment manufacturers, chemical-processing projects, and OEM buyers with standard and customized diaphragm valve orders. Whether you need a batch of manual UPVC valves, a special diaphragm material, large-diameter products, or valves supplied with replacement diaphragms, we can prepare a quotation covering the complete requested configuration.

Contact SOLID for PVC Diaphragm Valve Pricing, OEM Orders and Replacement Diaphragms.
