Diaphragm Valve vs. Butterfly Valve

Diaphragm Valve vs. Butterfly Valve: Pros, Cons and Application

Valves play a crucial role in complex engineering systems, controlling media flow and regulating pressure across various applications. Among the many types of valves—such as ball valves, needle valves, and butterfly valves—each serves a distinct purpose. In this article, we will compare diaphragm valves and butterfly valves, exploring their key differences, advantages, disadvantages, and the applications where each is best suited.

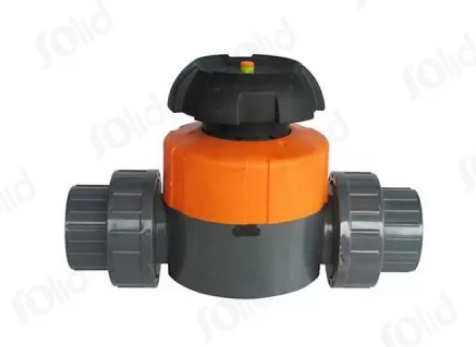

What Are Diaphragm Valves?

Diaphragm valves are bi-directional on-off throttle valves designed to control fluid flow and regulate speed within a system. Their name comes from the flexible diaphragm, a thin membrane that moves up and down inside the valve body to open or close the passage. These valves are available in various materials, including plastics, single-use materials, and stainless steel. Stainless steel diaphragm valves, in particular, are favored for their durability, easy maintenance, and leak-proof design, making them ideal for hygienic and high-purity applications.

How Do Diaphragm Valves Work?

Diaphragm valves operate similarly to pinch valves. They use a linear compressor mechanism that presses the diaphragm against the valve body to regulate flow. When the valve is shut, the actuator is engaged—either by turning or pressing—forcing the diaphragm to seal against the valve edges, effectively stopping fluid movement.

Criteria for Selecting a Diaphragm Valve

Choosing the right diaphragm valve can be challenging since there are no industry-standard sizes. To ensure the best selection for your application, consider the following key parameters:

- Valve Size: The valve size plays a crucial role in throttling applications, directly impacting fluid control. To determine the correct size, assess the volume of fluid flowing through the system. Key factors to consider include the fluid’s state, flow characteristics, viscosity, and specific gravity. Additionally, understanding inlet and outlet pressures and temperatures is essential for optimal performance.

- Actuator Type: The type of actuator used influences the selection of a diaphragm valve. Common actuation methods include electric motor, thermal, pneumatic, and hydraulic systems. The appropriate actuator depends on the required force to control fluid flow within the system, ensuring efficient valve operation.

Advantages of Diaphragm Valves

1. Functions effectively as both an on-off and throttling valve.

2. Eliminates the risk of stem leakage.

3. Provides a tight, bubble-free seal.

4. Free from pockets that could trap impurities, slurries, or solid particles.

5. Resistant to chemical corrosion due to specialized valve linings.

Disadvantages of the Diaphragm Valve

1. Diaphragm valves are not suitable for use where the temperature is below -60 or more than 450 degrees Fahrenheit.

2. It is also not suitable for use in a flow system, where the flow pressure is more than 300psi.

3. Diaphragm valves are not ideal for use in multi-turn operations

Applications of Diaphragm Valves

Diaphragm valves are widely used across various industries due to their affordability, efficiency, and versatility in different sizes and configurations. Some of their key applications include:

1. Power Generation – Used in power plants for precise flow control in cooling and fuel systems.

2. Vacuum Services – Ideal for handling low-pressure vacuum systems with minimal leakage.

3. Breweries – Ensures sanitary and contamination-free flow in beverage production.

4. Corrosive Environments – Resistant to chemical degradation, making them suitable for handling aggressive fluids.

5. Water Treatment Facilities – Used in filtration and chemical dosing systems.

6. Pharmaceutical Manufacturing – Ensures hygienic fluid control in drug production and processing.

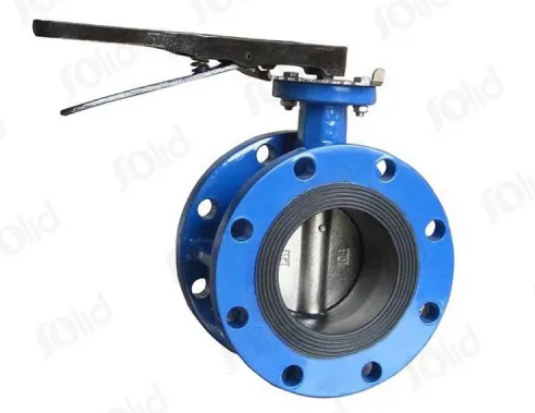

What Are Butterfly Valves?

Butterfly valves regulate fluid flow using a rotating circular plate or two hinged semicircular plates attached to a transverse spindle. Mounted within a pipe, they either allow or restrict flow with a simple 90-degree turn of the handle. These valves are particularly useful in confined spaces due to their compact design and ease of operation.

Advantages of Butterfly Valves

1. Lightweight and easy to install.

2. Space-efficient due to their compact structure.

3. Minimal pressure drop with high-pressure recovery.

4. Capable of providing bubble-tight sealing.

Disadvantages of Butterfly Valves

1. May leave residual materials in the pipeline.

2. Flow turbulence can impact disc movement.

3. Valve thickness may restrict fluid flow.

4. Thick or viscous liquids can hinder proper disc operation.

Applications of Butterfly Valves

Butterfly valves are widely used in various industries for their reliable flow control, including:

1. Vacuum Systems – Ensuring precise flow regulation in low-pressure applications.

2. Slurry Handling – Effective for controlling thick fluids and semi-solid materials.

3. High-Pressure & High-Temperature Systems – Used in steam and water control.

4. Compressed Air & Gas – Common in pneumatic and gas distribution networks.

5. Cooling & Fire Protection – Integral to water circulation and emergency safety systems.

The most significant difference between the butterfly and diaphragm valves is their valve elements. The diaphragm valve uses a thin, flexible membrane, whereas a butterfly valve uses a circular plate that controls fluid flow by closing and opening.
