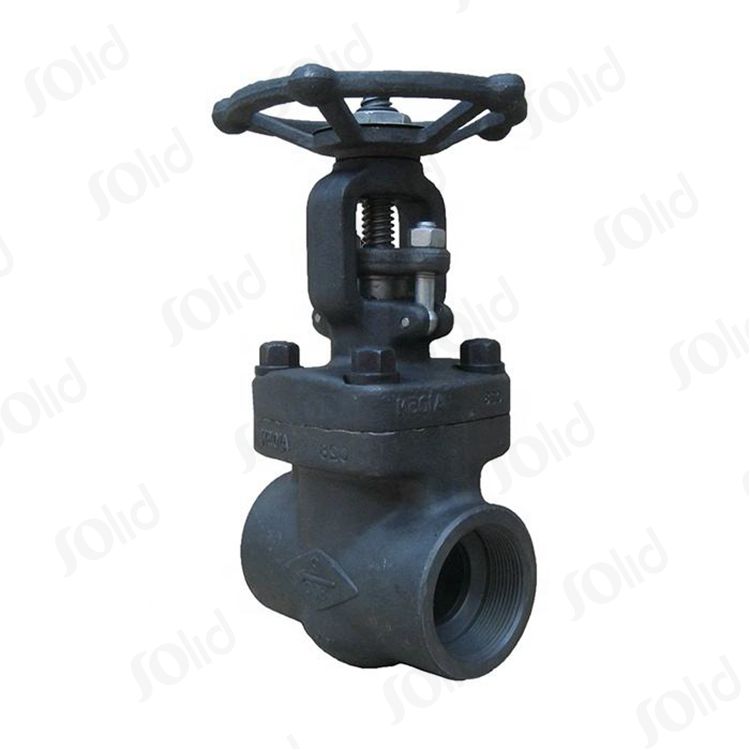

Forged Steel Gate Valve is a robust and durable valve designed for high-pressure and high-temperature applications. It is made of high-quality forged steel material that ensures strength and durability in extreme conditions. The valve body, bonnet, stem, and disc are all made of forged steel, making it highly resistant to corrosion, erosion, and wear from high-velocity fluid flow...
Forged Steel Gate Valve is a robust and durable valve designed for high-pressure and high-temperature applications. It is made of high-quality forged steel material that ensures strength and durability in extreme conditions. The valve body, bonnet, stem, and disc are all made of forged steel, making it highly resistant to corrosion, erosion, and wear from high-velocity fluid flow.
The gate valve features a non-rising stem that remains in a fixed position even during operation, resulting in space-saving advantages. The valve is designed with a wedge-shaped gate that tightly seals against the seat to prevent leakage, making it a reliable and safe option for industrial applications.
Our Forged Steel Gate Valve is available in various sizes and pressure classes, making it a versatile solution for various industries such as oil and gas, power generation, chemical, and petrochemical plants. It has a high flow capacity and low-pressure drop, which reduces energy consumption and minimizes operating costs.
The valve is designed with standard features such as bolted bonnet, flexible graphite or metal-to-metal seating, and backseat design for easy maintenance and repair. It is available with various end connections such as socket weld, threaded, and flanged, making it easy to integrate with existing piping systems.
The Forged Steel Gate Valve is engineered to meet international standards such as API 602, ASME B16.34, and BS 5352, ensuring reliable performance and long service life. It is also tested and approved to meet rigorous quality standards before delivery, providing peace of mind to our customers.
In summary, our Forged Steel Gate Valve is a reliable and high-performance valve suitable for demanding applications, designed to meet the needs of various industries. It combines strength, durability, and ease of maintenance to provide a cost-effective solution in the long term.
Design and manufacturing: API 602
Ends connection:
SW dimension: ANSI B16.11
Screwed dimension: ANSI B1.20.1
BW dimension: ANSI B16.25
Flange dimension: ANSI B16.5
Construction Feature: Bolt Bonnet (BB) and Outside Screwed Yoke (OS&Y) or Welded Bonnet (W.B) and Outside Screwed Yoke (OS&Y)
Test and inspection: API 598
Body material: A105、F304、F316、F304L、F316L、F5、F11、F22
Pressure: 150LB-1500LB
