Shanxi Solid Industrial Co., Ltd., a leading Flanged Y-strainer manufacturer in China. Specializing in durable cast iron and ductile iron flange type Y-strainers for reliable filtration solutions.
TAGS: Ductile Iron Valve

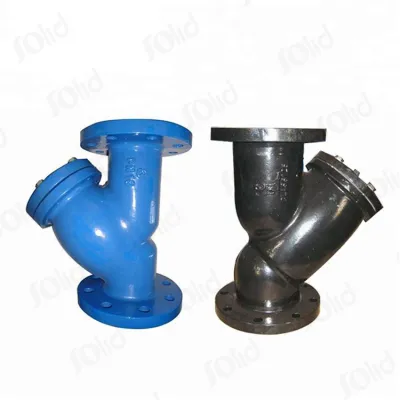

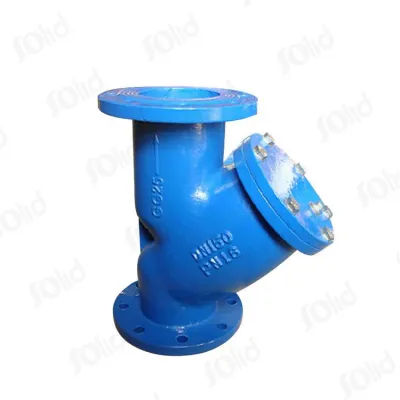

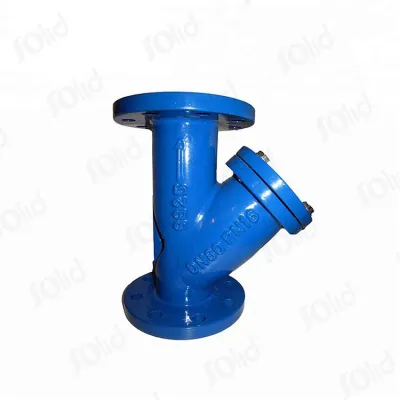

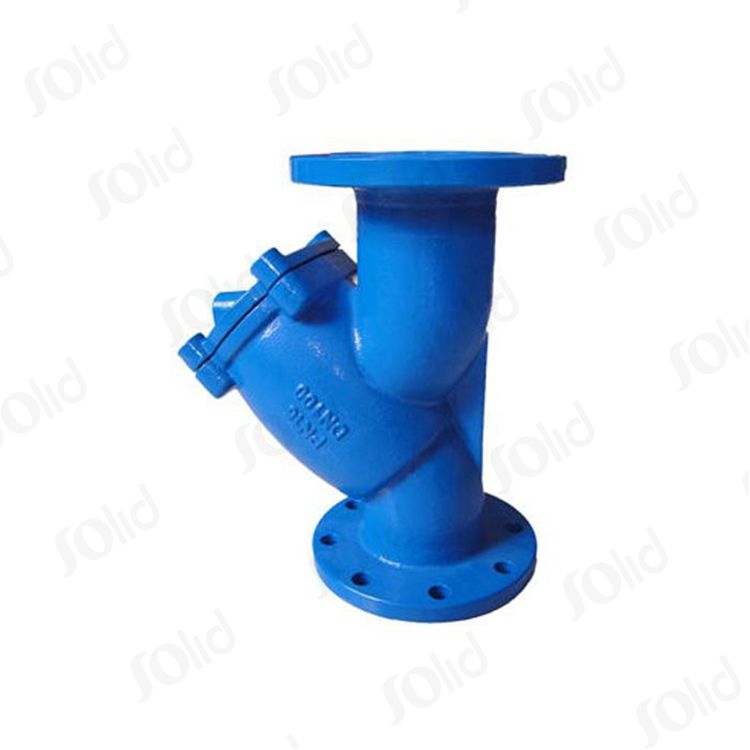

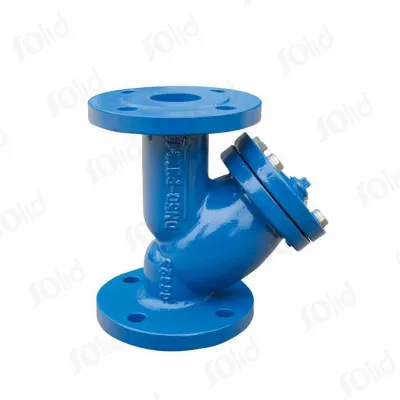

Y Strainer - Flanged Ends
Material: Ductile iron GGG40/50 /Cast Iron GG25/ Carbon Steel
Standard: BS2080, DIN3201-F1, MSS-SP
Flange drilling is according to BS4504, DIN2501, and ANSI B16.1 PN10, PN16
Working pressure: 10bar/16bar/25bar
Testing pressure:
Shell: 15bar/24bar/37.5bar
Seal: 11bar/17.6bar/27.5bar
Bonnet: Cast iron/Ductile iron
Screen: Stainless steel 304
Coating: Internal and external with fusion bonded epoxy coating min250μm or Liquid epoxy painting

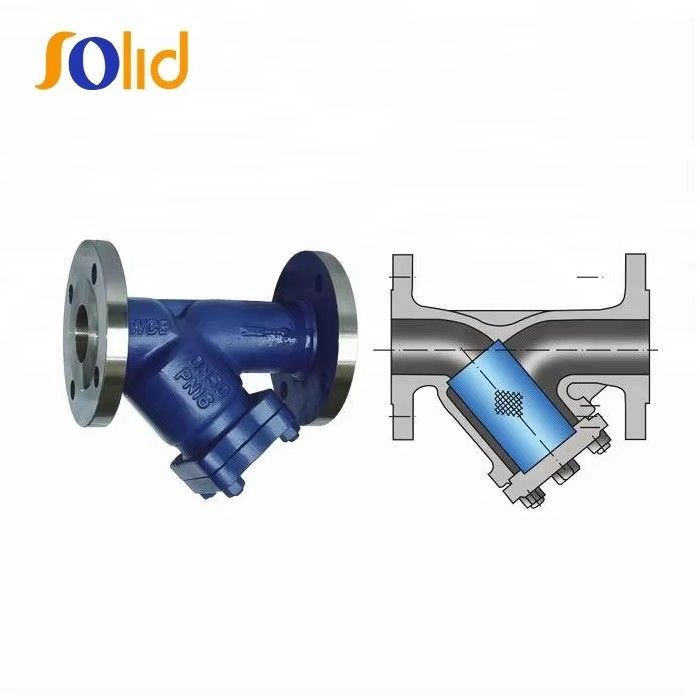

Flanged Y Strainers feature a machined seat which ensures a perfect fit for the removable, stainless steel screen.
The Flange End Y-strainer is designed to be installed in pipelines, this Y-strainer is a vital equipment that prevents particles and impurities from entering the system and causing damage to other machinery.
Constructed with ductile iron materials, the Flange End Y-strainer is available in a range of sizes and pressure ratings to meet the specific needs of the application. The Y-shaped configuration increases the surface area for filtration, making it an ideal choice for processes in which large volumes of fluid need to be filtered.
The Flange End Y-strainer is equipped with flanged connections which make it easy to install into pipelines. The flanges also provide a secure connection that reduces the risk of leakage during operation. Additionally, the strainer’s compact design enables it to be installed in tight spaces without taking up too much room.
The durable construction of the Flange End Y-strainer ensures a long lifespan and low maintenance. It is built to withstand harsh operating conditions, high flow rates, and temperatures. The strainer’s unique design also allows for quick and easy cleaning, reducing downtime and increasing operational efficiency.
In conclusion, the Flange End Y-strainer is a crucial component in any pipeline system. Its reliable performance and easy installation make it a popular choice for use in a variety of industries. Whether you’re preventing damage in a chemical plant, or ensuring purity in a food processing facility, the Flange End Y-strainer is an excellent choice for handling any application.
Standard: BS2080, DIN3201-F1, MSS-SP
Flange drilling is according to BS4504, DIN2501, and ANSI B16.1 PN10, PN16
Working pressure: 10bar/16bar/25bar
Testing pressure:
Shell: 15bar/24bar/37.5bar
Seal: 11bar/17.6bar/27.5bar
Material: Ductile iron GGG40/50 /Cast Iron GG25/ Carbon Steel
Bonnet: Cast iron/Ductile iron
Screen: Stainless steel 304
Coating: Internal and external with fusion bonded epoxy coating min250μm or Liquid epoxy painting
Ductile iron valves can be customized according to customer needs.
Customized ductile iron valves can be designed and manufactured according to specific dimensions, shapes, materials, and process requirements.
Customers can provide their own design drawings or requirement specifications, or communicate with suppliers to customize ductile iron valves that meet specific requirements. Customized ductile iron valves can meet the special needs of different engineering projects, improve the adaptability and reliability of the project.
