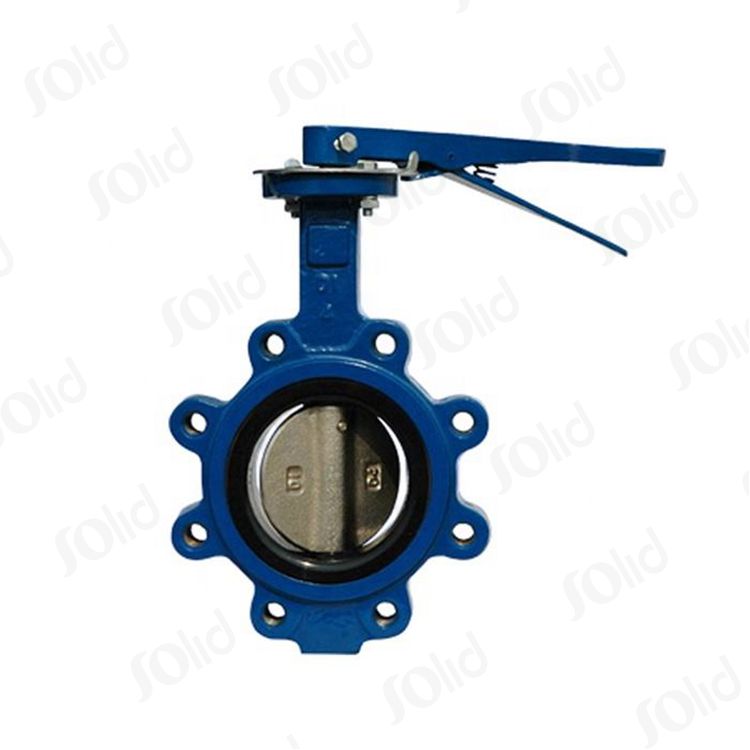

Lug Type Butterfly Valve is a kind of valve that is widely used in various industrial applications. Its unique design allows it to be used for a variety of functions such as regulating, isolating and throttling flow. The valve's design features a disc that is mounted on a shaft that rotates to control the flow of liquids or gases...
Lug Type Butterfly Valve is a kind of valve that is widely used in various industrial applications. Its unique design allows it to be used for a variety of functions such as regulating, isolating and throttling flow. The valve's design features a disc that is mounted on a shaft that rotates to control the flow of liquids or gases.
This valve is known for its high-performance capabilities, durability, and reliability. The Lug Type Butterfly Valve is ideal for use in applications where space is limited, as it has a small footprint. It features a compact, lightweight design that makes it easy to install and maintain.
One of the key benefits of the Lug Type Butterfly Valve is its ability to handle high-pressure applications. This valve can withstand pressure up to 16 Bar, making it ideal for applications where high-pressure conditions are present. Additionally, this valve is suitable for a wide range of temperatures, making it compatible with diverse industries and applications.
Another key feature is the easy maintenance and repair of the valve, which translates into minimum downtime, reduced maintenance costs, and increased productivity. The valve's simple design also facilitates easy disassembly, cleaning, and re-assembly.
Lug Type Butterfly Valve is popular due to its versatility and compatibility with a range of systems. It is an excellent solution for various applications including, chemical processing, oil & gas, petrochemicals, water treatment, food and beverage, and pharmaceuticals.
In conclusion, Lug Type Butterfly Valve is a high-performance valve that is suitable for a wide range of applications. It is durable, reliable and easy to maintain, providing excellent value for your investment. Its versatility, compact design, and low maintenance costs make it a preferred choice for many industries and applications.
Standard: EN593/ ISO 5752 /BS5155/AWWA C504
Flange drilling is according to DIN 2501, BS4504, ANSI B16.1
Working pressure: 10bar/16bar/25bar
Testing pressure:
Shell: 15bar/24bar/37.5bar
Seal: 11bar/17.6bar/27.5bar
Material:
Body: DI/CI /Carbon Steel/Stainless Steel
Disc: DI/Stainless steel 304/316, AL-Bronze
Shaft: Stainless steel410/416/420
Seat: EPDM/NBR
Coating: Internal and external with fusion bonded epoxy coating min250μm
Procuts Dimensions:
Lug Type Butterfly Valve
| Standard | EN593/ ISO 5752 /BS5155/AWWA C504 Flange drilling is according to DIN 2501, BS4504, ANSI B16.1 |
| Working pressure | 10bar/16bar/25bar |
| Testing pressure | |
| Shell | 15bar/24bar/37.5bar |
| Seal | 11bar/17.6bar/27.5bar |
| Material | |
| Body | DI/CI /Carbon Steel/Stainless Steel |
| Disc | DI/Stainless steel 304/316,AL-Bronze |
| Shaft | Stainless steel410/416/420 |
| Seat | EPDM/NBR |
| Coating | Internal and external with fusion bonded epoxy coating min250μm |

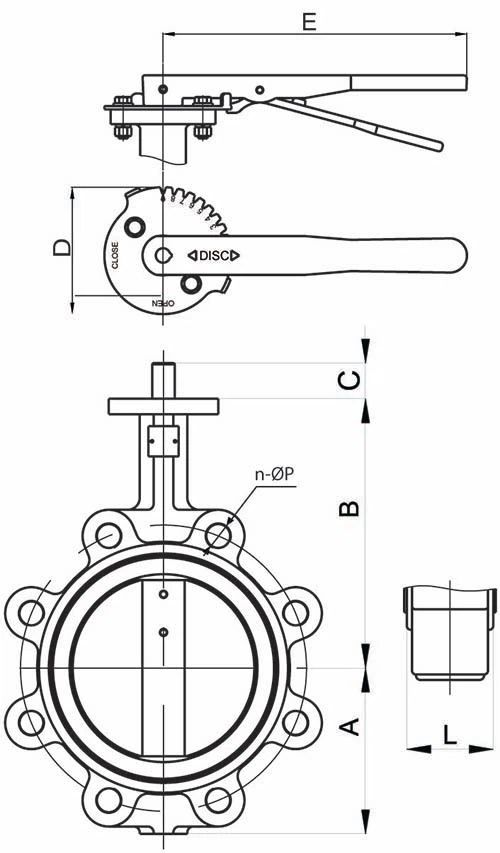

Lug Type Butterfly Valve Outline Dimensions&Connection Dimensions(mm)&Weight(kg)
SIZE | A | B | C | D | d0 | L | ISO5211 | K | E | 4-d | D0 | N-M | HXH | & | Weight(kg) |
2'' | 161 | 80 | 42 | 52.7 | 12.6 | 32 | F07 | 90 | 70 | 4-9 | 125 | 4-M16 | 11×11 | 90 | 3.8 |
2.5'' | 175 | 89 | 45.8 | 64.4 | 12.6 | 32 | F07 | 90 | 70 | 4-9 | 145 | 4-M16 | 11×11 | 90 | 4.2 |
3'' | 181 | 95 | 45.8 | 74.7 | 12.6 | 32 | F07 | 90 | 70 | 4-9 | 160 | 8-M16 | 11×11 | 45 | 4.7 |
4'' | 200 | 114 | 52 | 104 | 15.77 | 32 | F07 | 90 | 70 | 4-9 | 180 | 8-M16 | 11×11 | 45 | 9.0 |
5'' | 213 | 127 | 55 | 123.3 | 18.92 | 32 | F07 | 90 | 70 | 4-9 | 210 | 8-M16 | 14×14 | 45 | 10.9 |
6'' | 226 | 139 | 55.8 | 155.6 | 18.92 | 32 | F07 | 90 | 70 | 4-9 | 240 | 8-M20 | 14×14 | 45 | 14.2 |
8'' | 260 | 175 | 61.6 | 202.5 | 22.1 | 45 | F10 | 125 | 102 | 4-12 | 295 | 12-M20 | 17×17 | 30 | 18.2 |
10'' | 292 | 203 | 67.2 | 250.5 | 28.45 | 45 | F10 | 125 | 102 | 4-12 | 355 | 12-M24 | 22×22 | 30 | 26.8 |
12'' | 337 | 242 | 76.9 | 301.5 | 31.6 | 45 | F10 | 140 | 102 | 4-12 | 410 | 12-M24 | 22×22 | 30 | 40 |
14'' | 368 | 267 | 76.9 | 333.3 | 31.6 | 45 | F10 | 140 | 102 | 4-12 | 470 | 16-M24 | 22×22 | 22.5 | 56 |
16'' | 400 | 309 | 86.5 | 389.6 | 33.15 | 52 | F14 | 197 | 140 | 4-18 | 525 | 16-M27 | 27×27 | 22.5 | 96 |
18'' | 422 | 328 | 105.6 | 440.5 | 38 | 52 | F14 | 197 | 140 | 4-18 | 585 | 20-M27 | 27×27 | 18 | 122 |
20'' | 480 | 361 | 131.8 | 491.6 | 41.15 | 65 | F14 | 197 | 140 | 4-18 | 650 | 20-M30 | 36×36 | 18 | 202 |
24'' | 562 | 459 | 151.36 | 592.5 | 50.65 | 70 | F14 | 276 | 165 | 4-20 | 770 | 20-M33 | 36×36 | 18 | 270 |
Lug Type Butterfly Valve Details

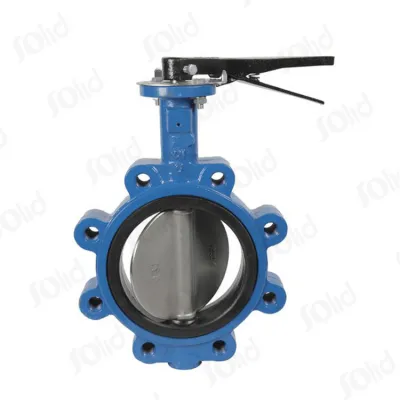

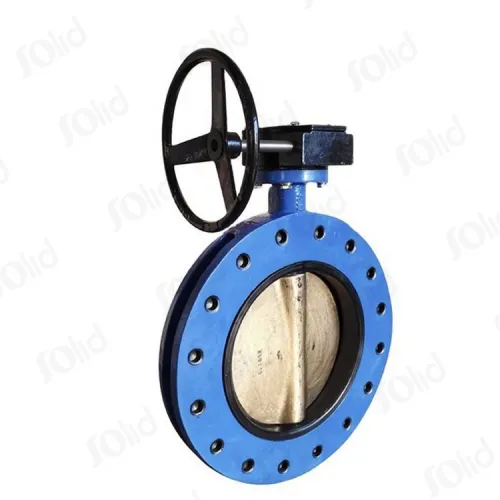

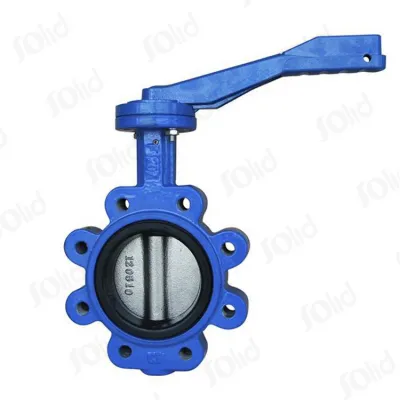

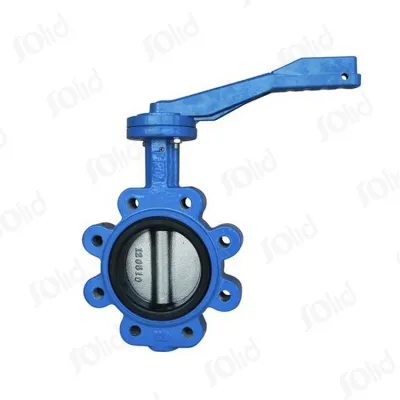

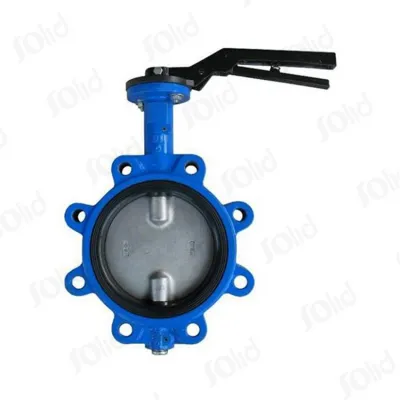

Related Products
Shanxi Solid Industrial Co., Ltd. is located in the heavy industry province of Shanxi, China with rich resources of pig irons, coke, steel and other industrial raw materials, we are one of the leading manufacturers of butterfly valves, gate valves, check valves, ball valves, air valves, globe ...
Ductile iron valves can be customized according to customer needs.
Customized ductile iron valves can be designed and manufactured according to specific dimensions, shapes, materials, and process requirements.
Customers can provide their own design drawings or requirement specifications, or communicate with suppliers to customize ductile iron valves that meet specific requirements. Customized ductile iron valves can meet the special needs of different engineering projects, improve the adaptability and reliability of the project.
