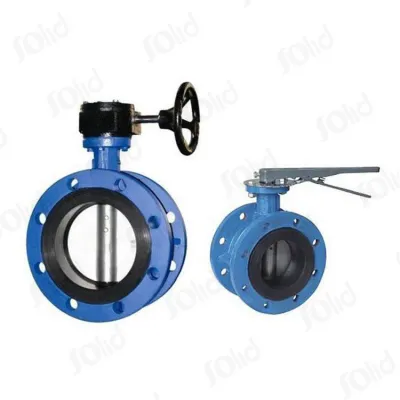

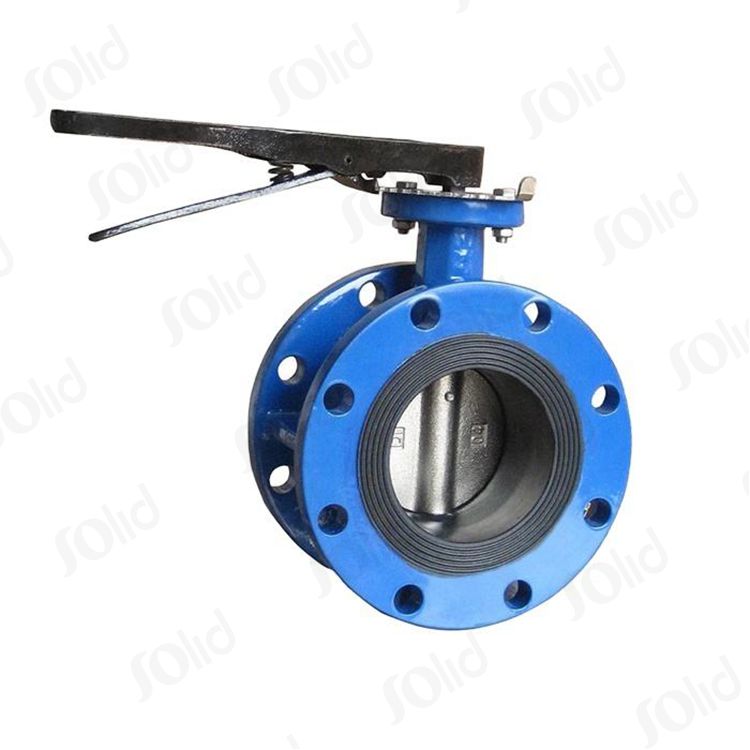

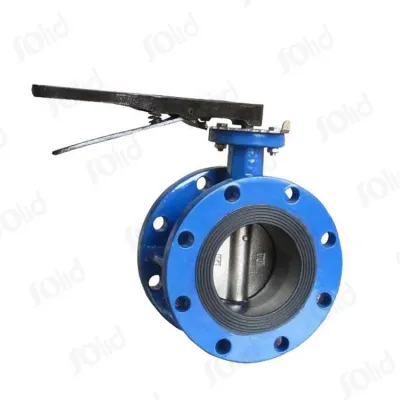

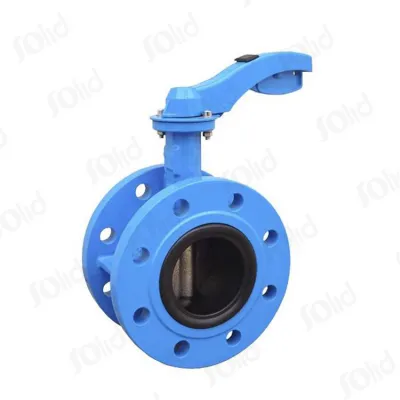

Double Flange Butterfly Valve

Double Flange Butterfly Valve

The Double Flange Butterfly Valve is a high performance valve designed for use in a wide range of industrial applications. It is designed to provide reliable and long-lasting performance in demanding conditions, making it ideal for use in systems where high flow rate and pressure are required.

The Double Flange Butterfly Valve is manufactured using high-quality materials such as ductile iron, stainless steel, and carbon steel. These materials are chosen for their strength, durability, and resistance to corrosion, ensuring that the valve can withstand even the most challenging conditions.

The valve is designed with an innovative double flange design that ensures easy installation and maintenance. It features a compact design, making it ideal for use in tight spaces, while its low weight ensures that it can be easily transported and installed.

One of the standout features of the Double Flange Butterfly Valve is its smooth flow characteristics. The valve is designed to provide a consistent, low-friction flow, reducing wear and tear on the valve and other components in the system. It also features a bubble-tight seal that helps to prevent leaks and ensure reliable performance.

The valve is also highly versatile, with a range of options available to suit different applications. It is available in a range of sizes, pressures, and materials, making it suitable for use in a wide variety of industries, including petrochemical, oil and gas, power generation, and water treatment.

Overall, the Double Flange Butterfly Valve is a reliable and cost-effective choice for anyone looking for a high-performance valve that can withstand demanding conditions. Its innovative design, smooth flow characteristics, and easy installation and maintenance make it a popular choice for a wide range of industrial applications.

Standard: EN593/ ISO 5752 /BS5155/AWWA C504

Flange drilling is according to DIN 2501, BS4504, ANSI B16.1

Working pressure: 10bar/16bar/25bar

Testing pressure:

Shell: 15bar/24bar/37.5bar

Seal: 11bar/17.6bar/27.5bar

Type: Double Flange Eccentric, Double Flange Concentric

Material:

Body: DI/CI /Carbon Steel/Stainless Steel

Disc: DI/Stainless steel 304/316, AL-Bronze

Shaft: Stainless steel410/416/420, Seat: EPDM/NBR

Coating: Internal and external with fusion bonded epoxy coating min 250μm
